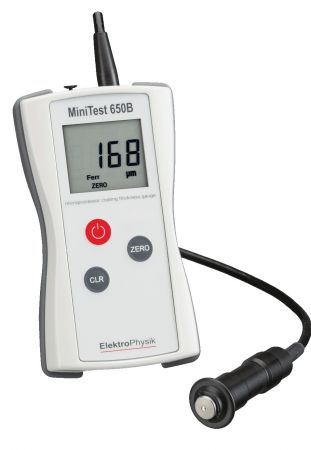

MiniTest 650B Basic Coating Thickness Gauge
The MiniTest 650B stands out for its simplicity and precision, making it ideal for measuring coatings on a wide range of metals. With two models available, this device adjusts to your specific measurement needs, both in industrial environments and in more rigorous conditions.
Available Models:
- MiniTest 650B-F: Equipped with a magnetic-induction sensor, designed exclusively for measurements on steel substrates.
- MiniTest 650B-FN: Featuring a dual sensor, this model can measure on both steel and non-ferrous metals, using principles of magnetic induction and eddy currents for non-magnetic and insulating coatings.
Special Features:
- Rugged Construction: The MiniTest 650B's rubber-rimmed casing and wear-resistant carbide sensor ensure a long lifespan and durability in harsh environments, such as abrasive or shot-blasted surfaces.
- High Accuracy: Delivers exact measurements with an accuracy of ± (2 μm + 3% of reading), ensuring reliable results for rigorous quality controls.
- Portability and Ease of Use: Its compact design and one-meter sensor cable facilitate quick and efficient measurements in the field or workshop.
Benefits of the MiniTest 650B:
- Reliable Measurements: Thanks to its advanced technology, it provides precise results, which are crucial for ensuring coating quality in various industrial applications.
- Adaptability: Capable of working on a variety of substrates and conditions, making it ideal for different industries, from automotive to bridge construction.
Contact us for more information or to place an order. Our technical team is ready to assist you in selecting the most suitable coating thickness gauge for your operational and technical needs, ensuring effective and accurate measurements for your most challenging projects.
Features
- Accuracy: ± (2 μm + 3 % of reading)
- Rugged and easy-to-handle coating thickness gauge
- Ram- and impact-protected through rubber rimmed casing
- Sensor with newly developed wear-resistant carbide metal tip
- Coating thickness measurement up to 2 or 3 mm
- External sensor
- DIN EN ISO 1461, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
- For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
- Automatic identification of the substrate material
- Proven measuring methods
The MiniTest 650B Coating Thickness Gauge is delivered as a complete kit with:
- MiniTest 650B
- Steel test plate for Ferro model or Steel-, and Aluminum test plates for FN model
- Calibration foils
- Operating instructions
- Gauge tether
- Belt pouch
- Works Certificate
Specifications
| Measuring Range | Model F(Ferro sensor): 0 … 3000 μm Model FN (Dual sensor): 0 … 2000 μm |
| Measuring Uncertainty | ± (2 μm + 3 % of reading) |
| Minimum curvature radius convex | 10 mm |
| Minimum curvature radius concave | 50 mm |
| Minimum measuring area | ø 50 mm |
| Minimum base thickness: | 0,7 mm (F) / 0,1 mm (N) |
| Display | 4-digit screen data (11 mm) |
| Measuring units | according to model: ìm/mm or mils/inch |
| Calibration | factory calibration , zero-point calibration |
| Power supply | 3 Micro AAA batteries (for more than 10,000 readings) |
| International standards | DIN EN ISO 1461, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376 |
| Dimensions and weight | Housing: 70 mm x 122 mm x 32 mm Sensor: Ø 15 mm x 62 mm / Ø 0.60; 225 grams |
| Ambient temperature | Gauge: 0 to 50 °C Sensor: -10 ° to 70 °C |
| Warranty | 1 year |
