Positector 6000TC Coating Thickness Gauge
For Thick Coatings
The POSITECTOR 6000TC is a coating thickness gauge designed to deliver fast, accurate, and non-destructive measurements of thick coatings on both ferrous metals and combinations of ferrous and non-ferrous metals (F or FN). With a measurement range of 0 to 6 mm and an exceptional resolution of 0.01 mm, this instrument is ideal for industries where controlling coating thickness is critical to ensure the quality and durability of the finish.
Key Features:
- Advanced Technology: Utilises magnetic induction and eddy current principles to measure coating thickness with high precision.
- Wide Range and High Resolution: Capable of measuring coatings from very thin to thick, with a range of 0 to 6 mm and a resolution of 0.01 mm.
- Flexible Configurations: Available in Standard (1) and Advanced (3) models, offering features such as a high-contrast colour LCD display, scan mode, and Bluetooth output for real-time graphing in the advanced version.
- Robust Construction: Designed to operate in harsh environments, ensuring durability and reliable performance.
Key Benefits:
- Non-Destructive Measurement: Evaluates coating thickness without damaging the surface, preserving the integrity of the finish.
- Precision and Reliability: Provides accurate and consistent results, essential for quality control in critical processes.
- Versatility in Application: Ideal for a wide range of industries, from automotive and construction to galvanising, where coating quality is paramount.
- Easy Integration and Operation: Its intuitive, menu-controlled interface and connectivity options (USB and Bluetooth in the advanced model) streamline data transfer and analysis, optimising workflow.
Contact us for more information or to place an order. Our team of experts is ready to assist you in selecting the coating thickness gauge that best meets your operational and technical requirements, ensuring precise and reliable results in your projects.
ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.
Easy-To-Use
- Ready to measure—no calibration adjustment required for most applications
- Enhanced one-handed menu navigation
- Flashing display—ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable
- Solvent, acid, oil, water and dust resistant - weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST included (Long Form)
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
Versatile
- Fully interchangeable probes are compatible with ALL gage bodies
- Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
- Selectable display languages
- Hi Contrast backlit display for bright or dark environments
- Flip display enables right-side-up viewing
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Uses alkaline or rechargeable batteries (built-in charger)
Powerful

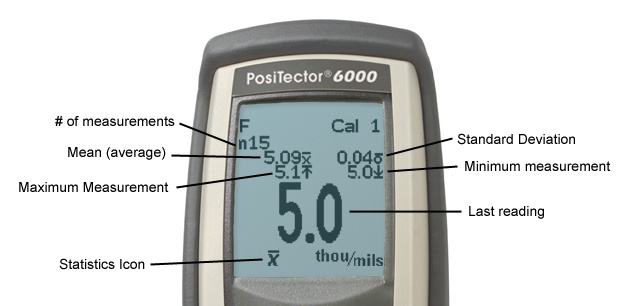

- Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- FAST mode - faster measurement speed for quick inspection
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
- Every stored measurement is date and time stamped
- Software updates via web keep your gage current
- Connects to PosiTector.net
Probe - Feature Comparison Chart
| Feature Comparison Chart | Standard (1) |
Advanced (3) |
| Hi Contrast LCD Display |  Color |
 Color |
| General Features | Standard (1) |
Advanced (3) |
| FAST mode - faster measurement speed for quick inspection | ||
| SCAN Mode - take continuous readings without lifting the probe | - |
|
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits |
|
|
| Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring |
|
|
| Onscreen help, real time graphing, picture prompting and batch notes | - | |
| Memory Features & Capacity | Standard (1) |
Advanced (3) |
| Reading Storage Capacity | 1000 in one group | 250,000 in up to 1000 groups |
| Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | - | |
| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | - | |
| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | - | |
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | - | |
| Connection Options | Standard (1) |
Advanced (3) |
| USB port for fast, simple connection to a PC and to supply continuous power. USB cable included | ||
| WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality | - | |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | - | |
| PosiSoft Solutions | Standard (1) |
Advanced (3) |
| PosiSoft Desktop Software Desktop software for PC or Mac computer | ||
| PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers | ||
| PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings | ||
| PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments | - |
| High-Range | ||
|---|---|---|
 |
Probe Models: | FNTS |
| Range: | 0 -250 mils | |
| 0 - 6 mm | ||
| >Accuracy*: | + (0.5 mils + 1%) 0 - 100 mils + (0.5 mil + 3%) > 100 mils |
|
|
+ (0.01 mm + 1%) 0 - 2.5 mm |
||
| Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. | ||
| Regular | ||
|---|---|---|
 |
Probe Models: | FTS |
| Range: | 0 -250 mils | |
| 0 - 6 mm | ||
| Accuracy*: | + (0.5 mils + 1%) 0 - 100 mils + (0.5 mil + 3%) > 100 mils |
|
|
+ (0.01 mm + 1%) 0 - 2.5 mm |
||
| *Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. | ||
Related Products
PosiTector 6000GP Coating Thickness Gauge
- Built-in temperature compensation ensures measurement accuracy
- Average Zero Feature; allows for multiple "zero measurements" ideal for measurements on rough substrates
- External probe for general purpose paint and coating applications
More details
PosiTector 6000IP Integrated Coating Thickness Gauge
- Integral probe for one hand use on paint and coating applications in the range of 0-60 mils (0-1500 microns)
More details
Positector 6000MP Coating Thickness Gauge
- High Resolution mode increases the displayed resolution for use on applications that require greater precision
More details
Positector 6000TCX Coating Thickness Gauge
- For extra thick paint and coatings up to 13 mm (150-500 mils)
More details
Cic-Coating Calibration Coating Thickness Gauge
- Easy planning of calibration
- Short turnaround
- Possibility to adjust and repair
- In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.
More details
Accessories
Specifications
| Measuring principle: | Magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous) |
| Display | Backlit & Reversible LCD |
| Data Output | IR & USB - "2" & "3" Models Bluetooth - "3" Models |
| Surface Temp. | Maximum 120 °F / 49 °C |
| Power | 3 AAA batteries, Included |
| Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) |
| Weight | 5.8 oz. (165 g) without batteries |
| Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant |
| Warranty | 2 Years |
| Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
