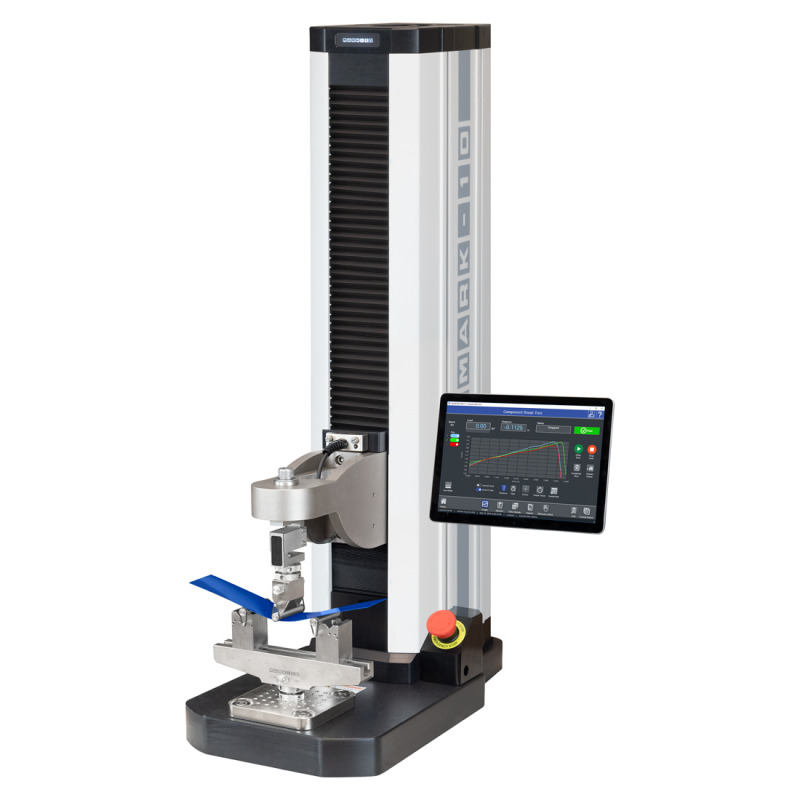

Test Stand with IntelliMESUR® F755 / F1505
The Series F IntelliMESUR® test stands integrate the functionality of a bench dynamometer with a modular, robust design, offering precise tension and compression testing with load capacities from 3.4 kN up to 6.7 kN. These systems are ideal for both industrial and research environments, combining cutting-edge technology with an intuitive interface that allows you to measure force and displacement, configure tests, and analyse results quickly and easily. Thanks to their compatibility with FS05 and R07 force sensors – with the AC1083 adapter required for the FS05 series – and IntelliMESUR® software, these test stands adapt to a wide range of applications in industrial and research settings.
Key Features:
- Integrated IntelliMESUR® System: Enables you to configure, execute and analyse tests from a centralised interface, simplifying both basic and sequenced test setups.
- 10-Inch Touch Panel: Offers an intuitive and visual user experience, speeding up test setup and monitoring while reducing the learning curve.
- Advanced Connectivity: Equipped with two independent USB‑C ports for direct PC connection and external data storage, facilitating efficient data management.
- Compatibility and Adaptability: Works with FS05 and R07 force sensors and is complemented by the AC1083 adapter for the FS05 series, ensuring versatile measurement capabilities.
- Flexible Configurations: Available in various models and heights, allowing adaptation to diverse testing requirements and optimising use in limited or specific spaces.
Key Benefits:
- Ease of Use: The integration of IntelliMESUR® software and the touch panel reduces the learning curve, enabling users of any level to configure and execute tests with confidence.
- Accurate and Customised Results: High-precision measurements of force and displacement facilitate the generation of detailed reports and custom graphs, optimising quality control.
- Operational Efficiency: Advanced connectivity and the ability to store and export data streamline analysis and decision-making, reducing operational times.
- Scalability and Adaptability: Its modular design allows you to expand functionalities through customised configurations, adapting to the growth and diversification of your testing needs.
Contact us for more information or to place an order. Our expert team is ready to assist you in selecting and configuring the IntelliMESUR® test stand that best suits your operational and technical needs, ensuring precise and reliable test results for your projects.
Features
- Test Creation Wizard: Simplify test setup with step‑by‑step guides that guarantee optimal results without complications.
- Integrated Motion Control and Data Collection: Enables precise control of displacement and real‑time data capture, enhancing test quality.
- Versatile Plug & Test® System: Compatible with load cells from other manufacturers via the PTAF adapter, expanding your measurement options.
- FollowMe® Function: Allows dynamic adjustment of the crosshead by pushing and pulling the force sensor, adapting to variations during testing.
- System Deflection Compensation: Automatically corrects any inherent deviations in the system, ensuring precise measurements.
- Auto-Return Function: Resets the probe to its initial position after each test, optimising operational efficiency.
- Overload Protection: Incorporates safety mechanisms to prevent damage under extreme test conditions.
- Secure User Access: Features a three-level permission system, protected by a password, allowing controlled system use by different users.
The F755, F755S, F1505, and F1505S force test stands are shipped as a complete kit, including the following accessories:
- 1 Control panel, mounting bracket, and hardware (-IMT models only)
- 1 USB flash drive containing software installation files (-IM models only)
- 1 USB dongle (-IM models only)
- 1 USB cable
- 1 Eye end kit for base
- 2 Lock rings for eye end
- 2 Spanner wrenches
- 1 Power cord
- 1 Allen wrench set
- 1 NIST-traceable calibration certificate
The F series equipped with IntelliMESUR® offers advanced analysis capabilities and technical requirements for strength testing. It features options for a 10.1-inch display or screenless models for PC connection, ideal for advanced industrial research and development laboratories.
- Advanced Functions: Includes all the features of EasyMESUR® plus overlaying previous journeys and measuring the COF.
- Versatility and Precision: Capability to perform basic and complex tests, with options to extend columns and add screen protectors.
| Feature / Specification | IntelliMESUR® | EasyMESUR® |
|---|---|---|
| Basic test wizards | Included | Included |
| Multi-step tests | Included | - |
| Extended speed ranges | Included | Option |
| Distance measurement, distance limits, and preload | Included | Option |
| Auto-return and cycling | Included | Option |
| Break detection | Included | Option |
| Load holding | Included | Option |
| FollowMe® crosshead positioning | Included | Option |
| Batch testing | Included | - |
| Operator prompting | Included | - |
| Pass / fail limits | Included | Included |
| Report creator | Included | Option |
| Results | Large selection | 1 per test |
| Graphing and statistics | Included | Option |
| Overlay previous runs on graph | Included | - |
| PC control via third-party application | - | Option |
| Coefficient of friction (COF) measurement | Option | - |
| Overload protection | Included | Included |
| Accuracy - force sensor | ±0,1% or ±0.15% of sensor full scale | ±0,1% or ±0,15% of sensor full scale |
| Accuracy - test stand | ±0,1% of sensor full scale | ±0,1% of sensor full scale |
| Distance resolution | 0.01 mm | 0.02 mm |
| System deflection compensation | Included | Included |
| Accuracy - distance | ±0.05 mm, at any load or position | ±0,15 mm, at any load or position |
| Accuracy - speed | 0,2% of setting | 0,2% of setting |
| Peak load capture rate | 20.000 Hz | 5.000 Hz |
| Data acquisition rate | 1.000 Hz | 100 Hz |
| Number of data points per run | 1.000.000 | 100.000 |
| Users and permissions | 3 permission tiers, unlimited users | 1 tier (password access) |
| Runs on | Windows tablet or PC | Control panel only |
 |
 |
Quick access favorites screenQuickly access up to 10 favorite tests. Associate an image with each favorite for easy identification. Define your own favorites for faster test setup. |
Point of view, Graph screenThe Graph view plots force vs. distance or force vs. time. Overlay up to 10 runs for visual comparisons. |
 |
 |
Point of view Results screenThe Results view displays user selected results for each run. Statistics may be applied to selected results. |
Multi-step test setupBuilding upon basic test wizards, easily incorporate any combination of steps, with the ability to loop a sequence of steps. |
|
 |
Intelligent manual controlManually control the test stand to obtain quick force and distance results, or manually position the crosshead prior to a test. Select from several actuation methods, including momentary (buttonhold), maintained (button release) motion, jog mode with three distance presets. |
Calibrate force sensorsIntelliMESUR® provides an integrated utility, with an intuitive step-by-step wizard. Manual controls allow the technician to use the test stand to apply tension and compression forces. Alternatively you can remove the force sensors for off-site calibration with a Mark-10 Model M7I or M5I indicator. |
 |

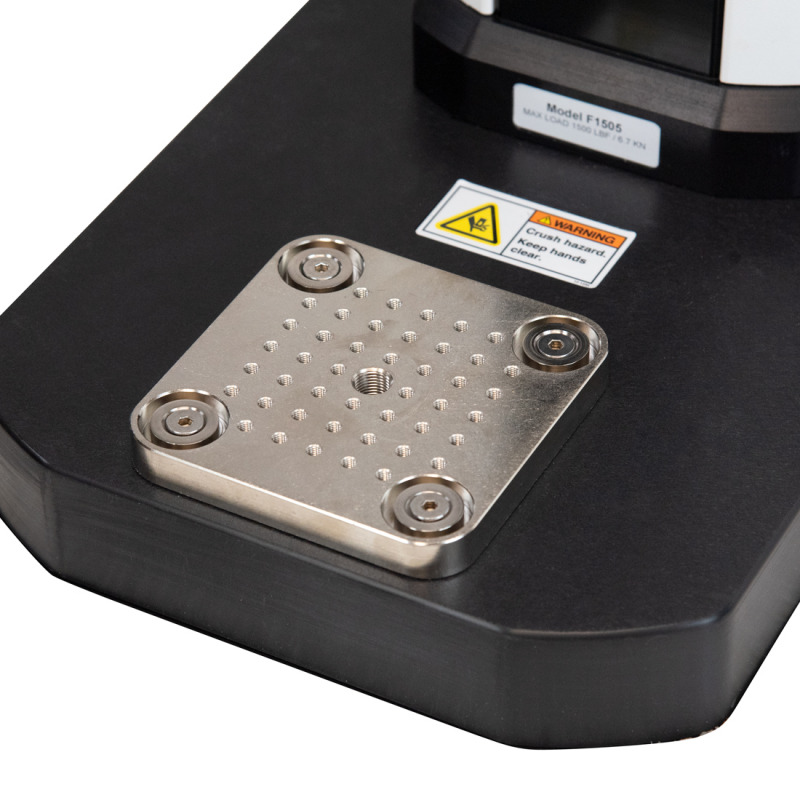

Rigid design |
 |
External limit switches Solid-state upper and lower limit switches may function as test limits as well as test exceptions. Dual-graduated rulers aid in switch placement. |
 |
Easy-to-service electronics Most electronics are housed in an integrated module. They are easily replaced without special tools or processes. |
Dimensions
| Model | A | B |
|---|---|---|
| F755 | 50.85 [1291.6] | 8.13 - 40.13 [206.4 - 1019.2] |
| F755S | 33.39 [848.1] | 8.13 - 22.33 [206.4 - 567.1] |
| F1505 | 51.35 [1304.3] | 8.13 - 40.13 [206.4 - 1019.2] |
| F1505S | 33.89 [860.9] | 8.13 - 22.33 [206.4 - 567.1] |
All sizes are noted in inch / [mm]
| Model F755 | Model F755S | Model F1505 | Model F1505S | |
|---|---|---|---|---|
| Load capacity | 3,4 kN | 3,4 kN | 6,7 kN | 6,7 kN |
| Maximum travel distance | 813 mm | 360 mm | 813 mm | 360 mm |
| Speed range | 0,02 - 1,525 mm/min | 0,02 - 1,525 mm/min | 0,02 - 1,800 mm/min | 0,02 - 1,800 mm/min |
| Load accuracy (% of full scale) |
|
|
|
|
| Load sampling rate | 20.000 Hz | 20.000 Hz | 20.000 Hz | 20.000 Hz |
| Data acquisition rate | 1.000 Hz | 1.000 Hz | 1.000 Hz | 1.000 Hz |
| Speed setting accuracy | ±0,2% | ±0,2% | ±0,2% | ±0,2% |
| Distance accuracy | ±0,05 mm, factory-compensated at up to full load | ±0,05 mm, factory-compensated at up to full load | ±0,05 mm, factory-compensated at up to full load | ±0,05 mm, factory-compensated at up to full load |
| Distance resolution | 0,01 mm | 0,01 mm | 0,01 mm | 0,01 mm |
| Limit switch repeatability | ±0,03 mm | ±0,03 mm | ±0,03 mm | ±0,03 mm |
| Power | Universal input 100-240 VAC, 50/60 Hz, 120W | Universal input 100-240 VAC, 50/60 Hz, 120W | Universal input 100-240 VAC, 50/60 Hz, 450W | Universal input 100-240 VAC, 50/60 Hz, 450W |
| Fuse type | 4A, 3AG, SLO BLO | 4A, 3AG, SLO BLO | 4A, 3AG, SLO BLO | 4A, 3AG, SLO BLO |
| Weight | 83 kg (test stand) 107 kg (shipping weight) | 68 kg (test stand) 88 kg (shipping weight) | 89 kg (test stand) 112 kg (shipping weight) | 71 kg (test stand) 93 kg (shipping weight) |
| Environmental conditions |
|
|
|
|
| Conformance | CE mark | CE mark | CE mark | CE mark |
| Warranty | 3 years | 3 years | 3 years | 3 years |
Load capacity is reduced at higher speeds, as follows: - F755 / F755S: limited to 2,3 kN above 900 mm/min - F1505 / F1505S: limited to 4,5 kN above 1.525 mm/min |
||||
Plug & Test® Sensors for the Series F
Mark-10’s Series F test stands employ a specialised version of Plug & Test® sensors for compression and tension testing. These sensors store calibration and configuration details within an internal PCB, allowing seamless interchangeability across multiple stands. Currently, the FS05, FS06, and R07 are available for use with the Series F range.
- FS05
- Capacities range from 0.5 kN to 2.5 kN.
- Connects directly to the F105, F305, and F505 test stands.
- Requires the AC1083 adapter for use with the F755 or F1505 stands.
- FS06 and R07
- Designed for both compression and tension applications.
- Make use of the Mark-10 operating system within the Series F test stands.
Through Mark-10’s Plug & Test® technology, all sensors store their own configuration and calibration information on-board, ensuring consistent and accurate readings when moved from one test stand to another.
PTAF Adapter
Designed for third-party strain gauge load cells, force, and torque sensors, the PTAF adapter offers exceptional flexibility for your Series F testing system:
- Direct Connectivity
- Attaches to F105, F305, and F505 stands without additional hardware.
- Compatible with the F755 and F1505 stands, as well as M5I and M7I indicators, using the AC1083 adapter.
- Configurable Capacities
- A user-friendly software utility allows the PTAF to be programmed with a wide library of common capacities, from 0.5 N up to 4,000 kN in force measurement and from 7 Ncm up to 57,000 Nm in torque measurement.
- Identification and Interchangeability
- Each adapter can be assigned an identification number, displayed upon power-up or on the test stand’s screen.
- All calibration and configuration data is stored within the adapter’s PCB, enabling quick swapping between sensors and indicators without loss of accuracy.
Whether you require direct connectivity for Mark-10’s native Plug & Test® sensors or need to integrate existing third-party devices, the PTAF adapter provides a versatile, reliable solution for your force and torque measurement needs.
 |
 |
|

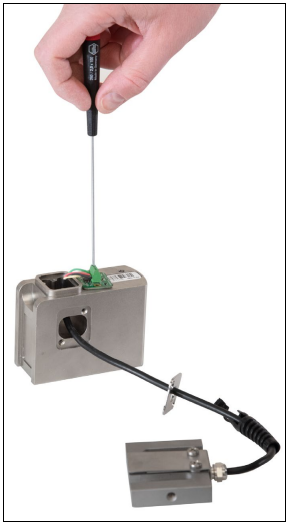

By removing the circuit board and side cover the third party sensor you can be connected to the PTAF adapter |
Feed the cable through and connect the wires to the terminal block. |
 |
 |
|
Replace the circuit board and side cover. |
The sensor can now be configured using the included , Plug & Test Adapter Configuration software and used on the Series-7 test stands. An extra adapter (AC1083) is required to connect the PTAF to the F755(S)/F1505(S) range test stands. |
