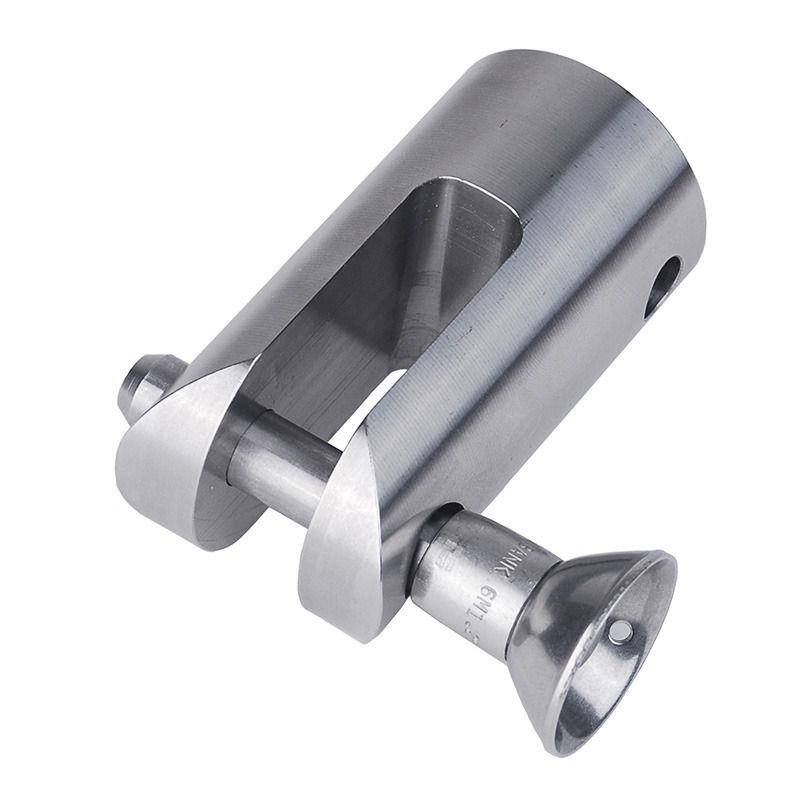

G1090 High Capacity Clevis Grip
The G1090 High-Capacity Clevis Grip is developed for pull testing up to 9 kN.
It features a spring-loaded pin with a precision ball plunger to lock it in place, for a safe and solid connection during high-capacity tests.
This grip is well suited for various pull testing applications, including extension spring testing, chain link break force testing, and other applications.
This robust grip is designed to work with an eye-end-adapter for easy connection to a load cell, force gauge or test stand.
The integrated eye-end mounting, ensures a quick and secure attachment to your equipment.
Features
- Secures a spring, chain, or other sample during tensile testing
- Maximum capacity 9 kN
- Eye-End mounting for quick tool changes

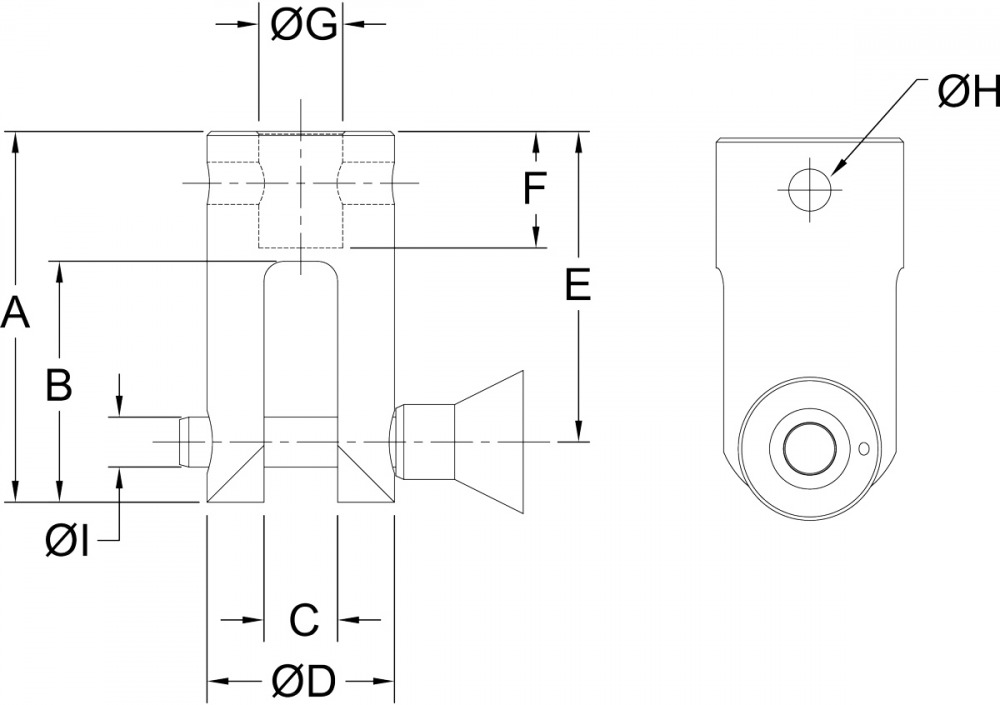

Dimensions
G1090 High Capacity Clevis Grip
| A (mm) | B (mm) | C (mm) | ØD (mm) | E (mm) | F (mm) | ØG (mm) | ØH (mm) | ØI (mm) |
|---|---|---|---|---|---|---|---|---|
| 70,4 | 45,7 | 14,0 | 35,6 | 58,9 | 22,1 | 15,9 | 8,0 | 9,7 |
Related Products
G1077 Clevis Grip
- Secures a spring, chain, or other sample during tensile testing
- A spring-loaded pin with ball plunger locks the pin in position
More details
Test stand with EasyMESUR® F755 / F755S / F1505 / F1505S
- Cable-Free FS05 Force Sensor Interface: Integrates a force sensor with an optimised cable-free interface for the FS05, ensuring interference-free measurements.
- Integrated Touchscreen Control Panel: Provides an intuitive user experience for centralised test setup, execution, and monitoring.
- Comprehensive Management via EasyMESUR®: Enables configuration, execution, and analysis of data directly through the integrated system, optimising workflow.
More details
Test Stand with IntelliMESUR® F755 / F1505
- Test Creation Wizard: Simplify test setup with step‑by‑step guides that guarantee optimal results without complications.
- Integrated Motion Control and Data Collection: Enables precise control of displacement and real‑time data capture, enhancing test quality.
- Versatile Plug & Test® System: Compatible with load cells from other manufacturers via the PTAF adapter, expanding your measurement options.
More details
Specifications
| Capacity | 9 kN |
| Gewicht | 400 g |
| Shipping weight | 900 g |
