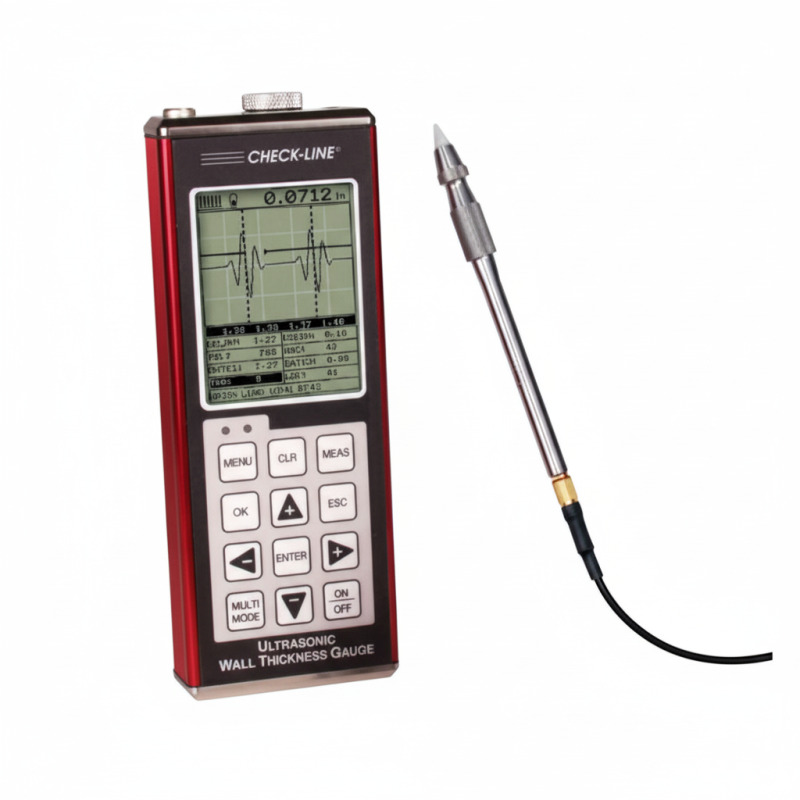

TI-PVX Ultrasonic Thickness Gauge
Flexibility and Precision in High-Resolution Measurements
Discover the TI-PVX from Checkline, a precision ultrasonic thickness gauge that offers the necessary flexibility for both high-resolution and high-penetration applications. This device is designed to adapt to a variety of industrial applications, from delicate measurements to more demanding work environments.
Key Features:
- Diversity of Transducers: The TI-PVX can use different single-element transducers, including standard and pencil delay lines, for measuring in hard-to-access areas or on thin materials.

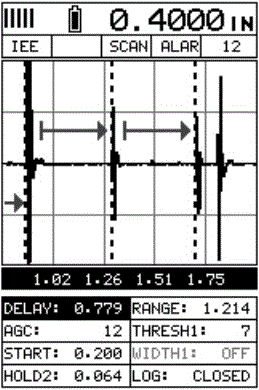

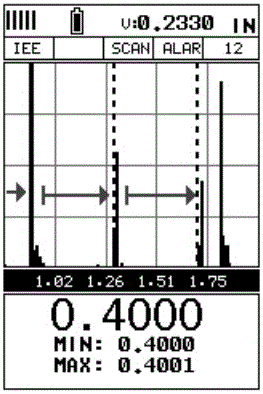

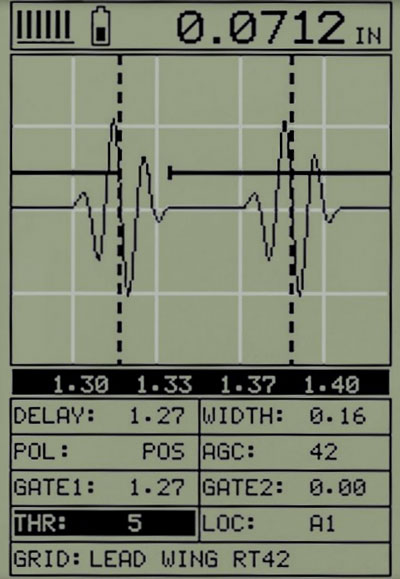

- Advanced Display Options: Offers multiple viewing options, such as RF waveform, +/- rectified waveform, and large digits, facilitating data interpretation.
Special Features:
- High-Speed Scanning: Capable of performing 32 measurements per second, allowing for quick and efficient inspections of large areas.

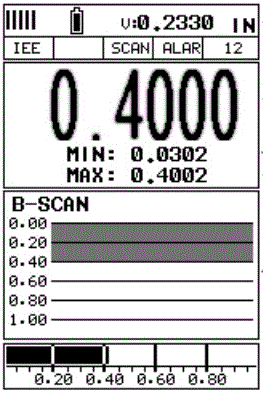

- Time-Based B-Scan: Displays a cross-section of the inspected material, providing a detailed profile of the opposite surface.
User Benefits:
- Easy to Use: Its ergonomic design and intuitive menu make it simple to operate, even for non-expert users.
- Robust and Reliable: With its durable construction and CE certification, the TI-PVX is designed to deliver dependable results across various industrial environments.
The TI-PVX is the perfect tool for professionals who need a versatile gauge capable of tackling measurement challenges across a wide range of materials and applications, ensuring precise and efficient measurements.
Features
- Multiple calibration options: One Point, Two Point, or selection from a Material List.
- 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
- Hardware AGC gain control for multiple echo and thru-paint measurement.
- The TI-PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs.
- The high speed scan feature
- Visual and audible alarm with hi and lo limit settings for specific application tolerances.
- Adjustable resolution settings
- Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view.
- The TI-PVX comes complete with our Windows® PC software for transferring data to and from a PC.
- 2 year limited warranty
- CE Certified
- Includes NIST traceable calibration certificate

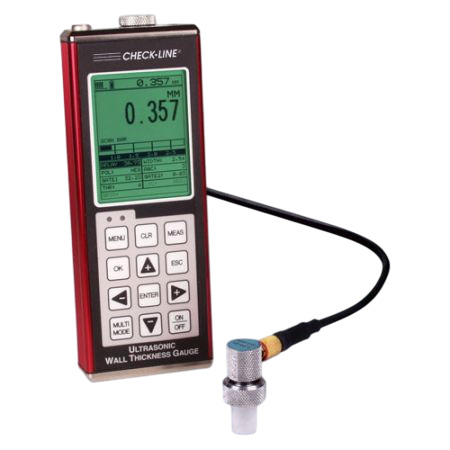

- 1/4" 15MHz Delay Line Probe p/n T-402-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe
Accessories
PVX-V-BLOCK Transducer Holder for TI-PVX Thickness Gauge
- For better control and repeatability on flat and curved surfaces
- For TI-PVX pencil probes
More details
TI-SB Ultrasonic Thickness Gauge Accessories
- Precision Machined and Finished
- Includes NIST Report and Test Data
- Includes Wooden Storage Box
More details
TI-SB4 Steel Test Block
- Uncertified Steel Test Block
- For convenient confirmation of thickness gauge calibration
More details
TICC-MVX Instrument Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Built-in belt loop
- Includes wrist & shoulder straps
More details
CF-AN Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr
More details
Li-Ion Rechargeable AA Batteries via the USB to USB-C
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details
CIC-WALL Wall Thickness Gauge Calibration Service
- Easy planning of calibration
- Short turnaround
- Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
- Possibility to adjust and repair
More details

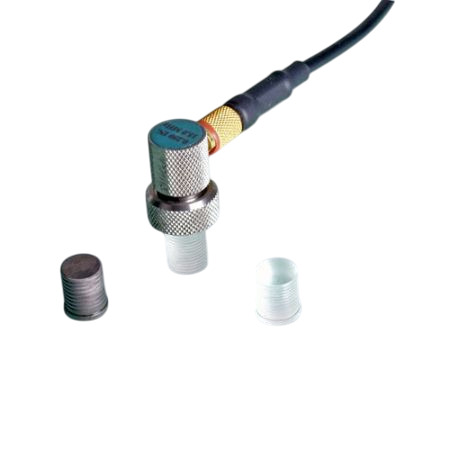

T-402-5507 Single Element Delay Line Transducer
- Spare / Replacement 15 MHz Probe for PX and PVX gauges
More details
| P/N | Description | Standard / Optional | Image |
|---|---|---|---|
| X-152-0000 | 1/16” Dia. x .450" L | Standard |  |
| X-752-0000 | 1/8" Dia. x .450" L | Optional |  |
| P/N | Description | Standard / Optional | Image |
|---|---|---|---|
| X-231-0000 | 1/4" x 3/8" for all metals (Short) |
Standard |  |
| X-241-0000 | 1/4" x 1/2" for all metals (Long) |
Standard |  |
| X-633-0000 | 1/4" x 3/8" Graphite Tip for thin plastics (Graphite Short) |
Optional |  |
| X-532-0000 | 3/16" x 3/8" Conical Tip for all metals (Cone) |
Optional |  |
| X-533-0000 | 3/16" x 3/8" Graphite Tip for thin plastics (Graphite Cone) |
Optional |  |
Complete Kit
The TI-PVX is supplied as a complete kit with :
- Gauge
- Pencil probe
- 4 oz. bottle of coupling fluid
- 2 AA batteries
- NIST Calibration Certificate
- Data transfer software
- Serial output cable
- Operating Instruction Manual
- Foam-fitted carrying case.
Specifications

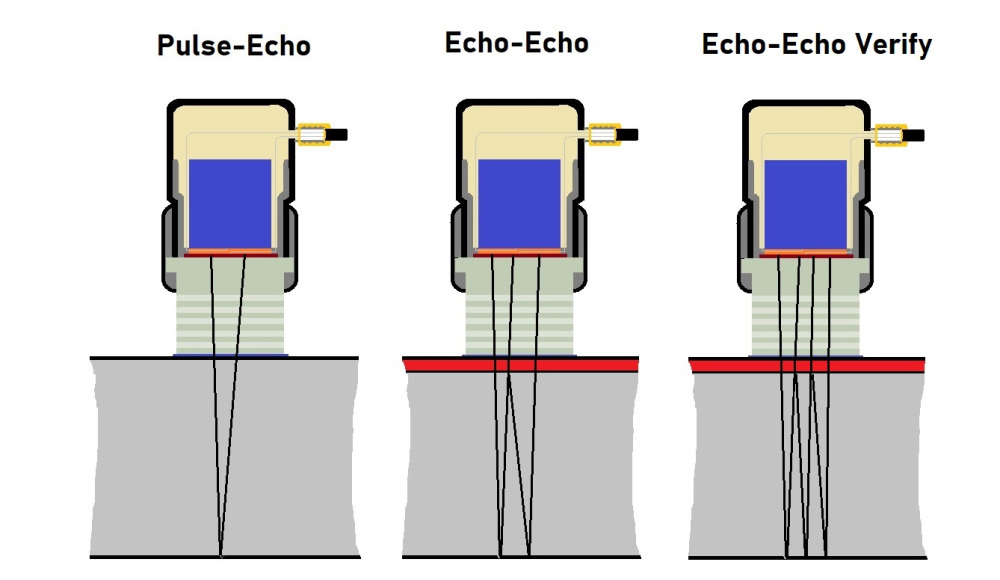

| Range: | Interface-Echo Mode: Steel 1.27mm - 25.4mm (0.05 - 1.0 in). Plastics from 0.127mm (.005in.). Echo-Echo Mode: Steel 0.15mm - 12.7mm (.006in -.500in). Pulse-Echo Contact Mode: Steel 1mm - 254mm (.040in - 10.0in). Plastics from 0.254mm (.010in). Echo-Echo Contact mode: Steel thru-paint 2.54mm - 76.2mm (.100in - 3.0in). |
| Resolution: | (selectable) +/- 0.01 mm (.001in), or +/- 0.001mm (.0001in). |
| Velocity Range: | .0492 to .3936 in./ms 1250 to 9999 meters/sec |
| Units: | English & Metric |
| Memory: | 16 megabit non-volatile ram. |
| Data Logger: | 12.000 readings and waveforms (alpha numeric storage). |
| Display: | 1/8 in. VGA grayscale display |
| Setups: | 16 factory and 48 user-defined setups. |

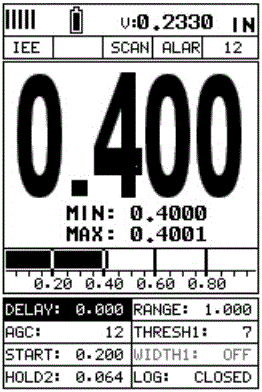

| Display Views: | A-Scan: Rectified +/- (half wave view) RF (full waveform view) B-Scan: Time based cross section view. Display speed of 15 secs per screen. Large Digits: Standard thickness view. Digit Height: 10mm (0.400 in). Scan Bar: 6 readings per second. Viewable in B-Scan and Large Digit views. Repeatability Bar Graph: Bar graph indicates stability of reading. |
| Power Source: | Three 1.5V alkaline or 1.2V NiCad AA cells |
| Battery Life: | Typically operates for 150 hours on alkaline and 100 hours on NiCad |
| Power off: | Auto power off if idle 5 min. |
| Operating Temperature: | -10° to 60°C (-14° to 140°F). |
| Size: | 63.5 W x 165 H x 31.5 D mm (2.5 W x 6.5 H x 1.24 D inches). |
| Weight: | 0.4 kg (0.9 lbs ) |
| Warranty: | Gauge: 2 Years Probe: 90 Days |
